Set Up the Hardware at your stand. Then go to WebAdmin to name and associate them to their physical Station.

Set up the Hardware at your stand

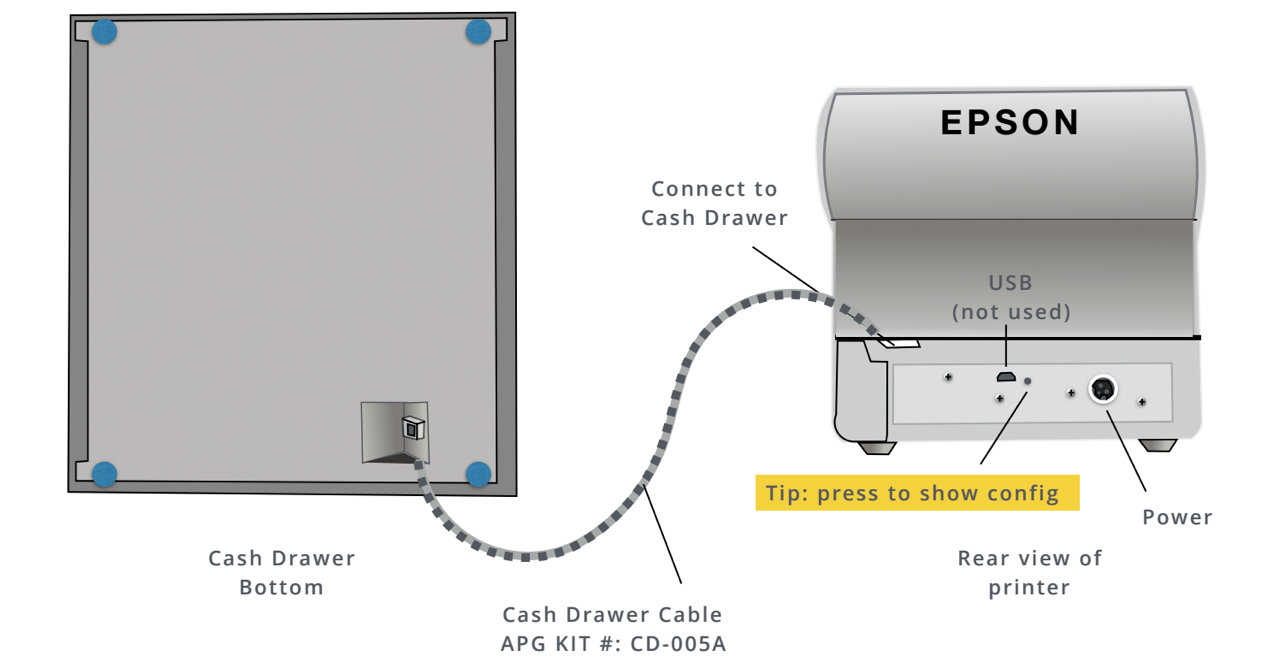

he Printer connects to the underside of the cash drawer with a special cable    that looks like ethernet on one end, and a phone jack on the other. This is an APG  KIT # CD-005A The printer pops the cash drawer, which requires no power. The   printer requires standard power, and connects the POS network via WiFi.

Back to top

WebAdmin, associate the printer with the physical Station at your Stand

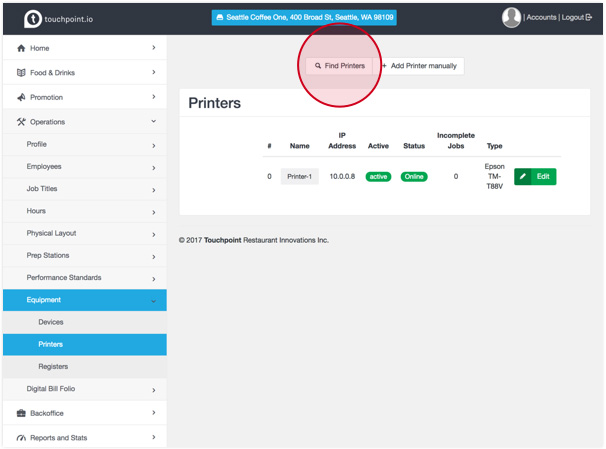

1. Click on "Find Printer"

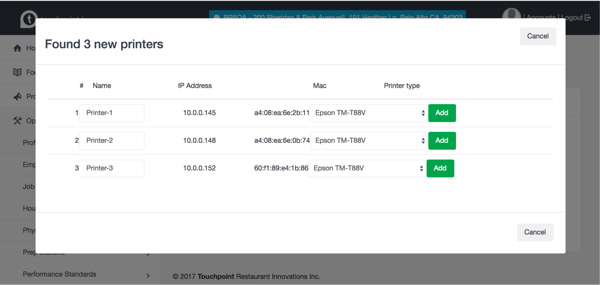

2. Name and click "Add"

Back to top

Verify successful setup

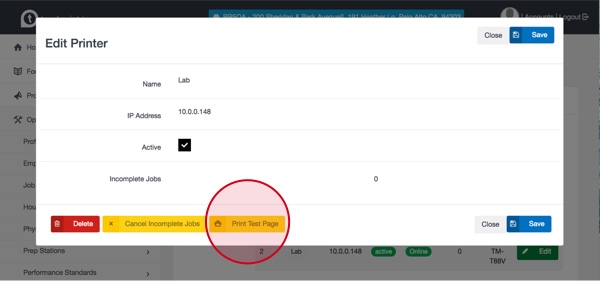

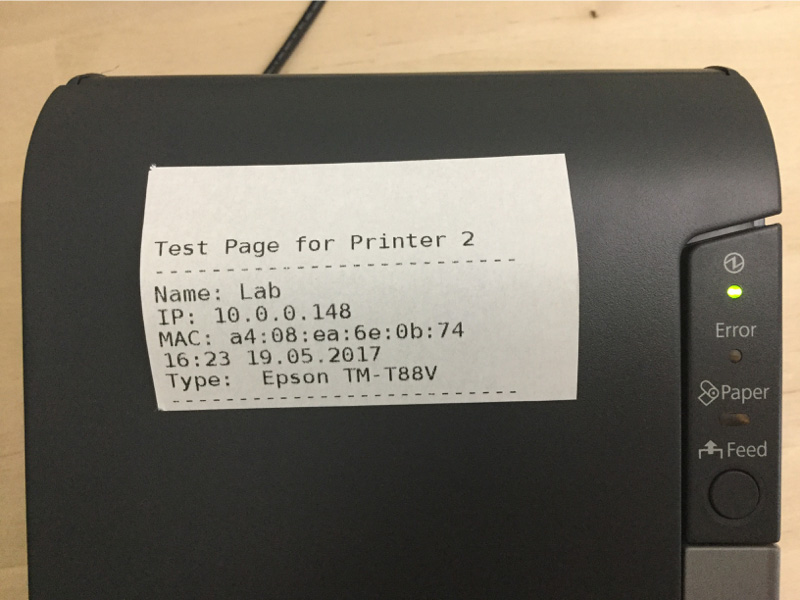

1. Verify success with printed test pages
Operations > Equipment > Printers > Edit

2. Verify success with printed config file
Use a small device such as a ball pen or paper clip to press the show config button on printer.
